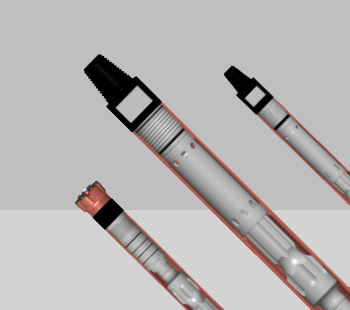

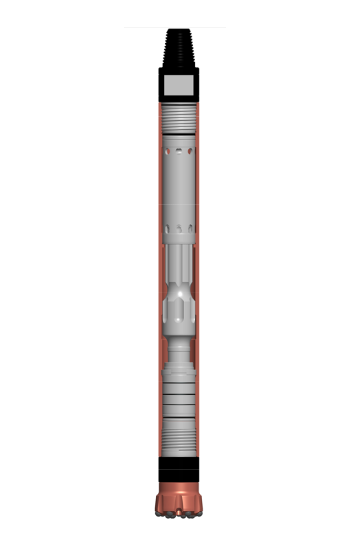

UDC SERIES

• UDC35DH
• UDC37DH
• UDC45S / UDC45TD / UDC45DH
• UDC47DI
• UDC55QL
• UDC65QL / UDC65DI / UDC65DH

DESIGN HIGHLIGHTS

• UDC Series is a valve less type hammers designed for high performance at low operating air pressures
• Suitable bits has a strong robust design without foot valve to withstand heavy duty application.
• UDC Series Hammers maximizes energy output and reduces service requirements.
• Wear Sleeve is not reversible.
• All critical internal components are heat treated under strict control to maximize tool longevity.

EXCLUSIVE FEATURES

• A built-in choke facility allows the driller to adjust the volume of air through the hammer to optimize cuttings evacuation.
• Unique internal mounting of liner eliminates the need for seating ring.
• Fewer internal components minimize service requirements.
• Multi-start threads on backhead and chuck ensure easy coupling / uncoupling of hammer.
• Excellent for all types of drilling applications typically for water well drilling and geothermal applications.

APPLICATIONS

• Water Well   • Mining   • Construction   • Quarry
